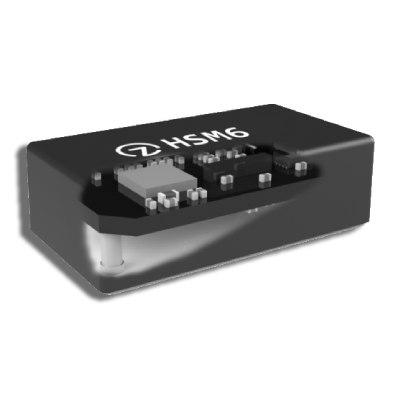

Zymbit HSM6

Our wallet review process

We examine wallets starting at the code level and continue all the way up to the finished app that lives on your device. Provided below is an outline of each of these steps along with security tips for you and general test results.

Developer

Website Twitter LinkedIn Facebook GitHub

Released

17th September 2021

Custody

Private keys generated and held by user

As part of our Methodology, we ask: Is the provider ignorant of the keys?

The answer is "yes". Private keys are generated by the user on the wallet.
Read more

Source code

Application build

Build cannot be done because the source code is not publicly available.

Platform notes

There is no globally accepted definition of a hardware wallet. Some consider a paper with 12 words a hardware wallet - after all paper is a sort of hardware or at least not software and the 12 words are arguably a wallet(‘s backup). For the purpose of this project we adhere to higher standards in the hardware wallet section. We only consider a hardware wallet if dedicated hardware protects the private keys in a way that leaves the user in full and exclusive control of what transactions he signs or not. That means:

  • The device allows to create private keys offline

  • The device never shares private key material apart from an offline backup mechanism

  • The device displays receive addresses for confirmation
  • The device shares signed transactions after informed approval on the device without reliance on insecure external hardware

Passed 3 of 10 tests

We answered the following questions in this order:
We stopped asking questions after we encountered a failed answer.

Is this product the original?

The answer is "yes".
If the answer was "no", we would mark it as "Fake" and the following would apply:

The answer is "no". We marked it as "Fake".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "Fake" and the following would apply:

The bigger wallets often get imitated by scammers that abuse the reputation of the product by imitating its name, logo or both.

Imitating a competitor is a huge red flag and we urge you to not put any money into this product!

The product cannot be independently verified. If the provider puts your funds at risk on purpose or by accident, you will probably not know about the issue before people start losing money. If the provider is more criminally inclined he might have collected all the backups of all the wallets, ready to be emptied at the press of a button. The product might have a formidable track record but out of distress or change in management turns out to be evil from some point on, with nobody outside ever knowing before it is too late.
Can we expect the product to ever be released?

The answer is "yes".
If the answer was "no", we would mark it as "Announced but never delivered" and the following would apply:

The answer is "no". We marked it as "Announced but never delivered".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "Announced but never delivered" and the following would apply:

Some products are promoted with great fund raising, marketing and ICOs, to disappear from one day to the other a week later or they are one-man side projects that get refined for months or even years to still never materialize in an actual product. Regardless, those are projects we consider “vaporware”.

Is this product available yet?

The answer is "yes".
If the answer was "no", we would mark it as "Un-Released" and the following would apply:

The answer is "no". We marked it as "Un-Released".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "Un-Released" and the following would apply:

We focus on products that have the biggest impact if things go wrong and while pre-sales sometimes reach many thousands to buy into promises that never materialize, the damage is limited and there would be little definite to be said about an unreleased product anyway.

If you find a product in this category that was released meanwhile, please contact us to do a proper review!

Is it a wallet?

The answer is "yes".
If the answer was "no", we would mark it as "Not a wallet" and the following would apply:

The answer is "no". We marked it as "Not a wallet".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "Not a wallet" and the following would apply:

If it’s called “wallet” but is actually only a portfolio tracker, we don’t look any deeper, assuming it is not meant to control funds. What has no funds, can’t lose your coins. It might still leak your financial history!

If you can buy Bitcoins with this app but only into another wallet, it’s not a wallet itself.

Is it for bitcoins?

The answer is "yes".
If the answer was "no", we would mark it as "A wallet but not for Bitcoin" and the following would apply:

The answer is "no". We marked it as "A wallet but not for Bitcoin".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "A wallet but not for Bitcoin" and the following would apply:

At this point we only look into wallets that at least also support BTC.

Is the provider ignorant of the keys?

The answer is "yes".
If the answer was "no", we would mark it as "Provided private keys" and the following would apply:

The answer is "no". We marked it as "Provided private keys".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "Provided private keys" and the following would apply:

The best hardware wallet cannot guarantee that the provider deleted the keys if the private keys were put onto the device by them in the first place.

There is no way of knowing if the provider took a copy in the process. If they did, all funds controlled by those devices are potentially also under the control of the provider and could be moved out of the client’s control at any time at the provider’s discretion.

The product cannot be independently verified. If the provider puts your funds at risk on purpose or by accident, you will probably not know about the issue before people start losing money. If the provider is more criminally inclined he might have collected all the backups of all the wallets, ready to be emptied at the press of a button. The product might have a formidable track record but out of distress or change in management turns out to be evil from some point on, with nobody outside ever knowing before it is too late.
Does the device hide your keys from other devices?

The answer is "yes".
If the answer was "no", we would mark it as "Leaks Keys" and the following would apply:

The answer is "no". We marked it as "Leaks Keys".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "Leaks Keys" and the following would apply:

Some people claim their paper wallet is a hardware wallet. Others use RFID chips with the private keys on them. A very crucial drawback of those systems is that in order to send a transaction, the private key has to be brought onto a different system that doesn’t necessarily share all the desired aspects of a hardware wallet.

Paper wallets need to be printed, exposing the keys to the PC and the printer even before sending funds to it.

Simple RFID based devices can’t sign transactions - they share the keys with whoever asked to use them for whatever they please.

There are even products that are perfectly capable of working in an air-gapped fashion but they still expose the keys to connected devices.

This verdict is reserved for key leakage under normal operation and does not apply to devices where a hack is known to be possible with special hardware.

The product cannot be independently verified. If the provider puts your funds at risk on purpose or by accident, you will probably not know about the issue before people start losing money. If the provider is more criminally inclined he might have collected all the backups of all the wallets, ready to be emptied at the press of a button. The product might have a formidable track record but out of distress or change in management turns out to be evil from some point on, with nobody outside ever knowing before it is too late.
Can the user verify and approve transactions on the device?

The answer is "yes".
If the answer was "no", we would mark it as "Bad Interface" and the following would apply:

The answer is "no". We marked it as "Bad Interface".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "Bad Interface" and the following would apply:

These are devices that might generate secure private key material, outside the reach of the provider but that do not have the means to let the user verify transactions on the device itself. This verdict includes screen-less smart cards or USB-dongles.

The wallet lacks either a screen or buttons or both. In consequence, crucial elements of approving transactions is being delegated to other hardware such as a general purpose PC or phone which defeats the purpose of a hardware wallet. For big exit scams, a companion app could always request two signatures - one for the coffee you are paying and a second to empty your wallet completely. The former could be broadcast while the latter only gets collected for later use.

Another consquence of a missing screen is that the user is faced with the dilemma of either not making a backup or having to pass the backup through an insecure device for display or storage.

The software of the device might be perfect but this device cannot be recommended due to this fundamental flaw.

The product cannot be independently verified. If the provider puts your funds at risk on purpose or by accident, you will probably not know about the issue before people start losing money. If the provider is more criminally inclined he might have collected all the backups of all the wallets, ready to be emptied at the press of a button. The product might have a formidable track record but out of distress or change in management turns out to be evil from some point on, with nobody outside ever knowing before it is too late.
Is the source code publicly available?

The answer is "yes".
If the answer was "no", we would mark it as "No source for current release found" and the following would apply:

The answer is "no". We marked it as "No source for current release found".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "No source for current release found" and the following would apply:

A wallet that claims to not give the provider the means to steal the users’ funds might actually be lying. In the spirit of “Don’t trust - verify!” you don’t want to take the provider at his word, but trust that people hunting for fame and bug bounties could actually find flaws and back-doors in the wallet so the provider doesn’t dare to put these in.

Back-doors and flaws are frequently found in closed source products but some remain hidden for years. And even in open source security software there might be catastrophic flaws undiscovered for years.

An evil wallet provider would certainly prefer not to publish the code, as hiding it makes audits orders of magnitude harder.

For your security, you thus want the code to be available for review.

If the wallet provider doesn’t share up to date code, our analysis stops there as the wallet could steal your funds at any time, and there is no protection except the provider’s word.

“Up to date” strictly means that any instance of the product being updated without the source code being updated counts as closed source. This puts the burden on the provider to always first release the source code before releasing the product’s update. This paragraph is a clarification to our rules following a little poll.

We are not concerned about the license as long as it allows us to perform our analysis. For a security audit, it is not necessary that the provider allows others to use their code for a competing wallet. You should still prefer actual open source licenses as a competing wallet won’t use the code without giving it careful scrutiny.

The product cannot be independently verified. If the provider puts your funds at risk on purpose or by accident, you will probably not know about the issue before people start losing money. If the provider is more criminally inclined he might have collected all the backups of all the wallets, ready to be emptied at the press of a button. The product might have a formidable track record but out of distress or change in management turns out to be evil from some point on, with nobody outside ever knowing before it is too late.
Is the decompiled binary legible?

The answer is "yes".
If the answer was "no", we would mark it as "Obfuscated" and the following would apply:

The answer is "no". We marked it as "Obfuscated".

We did not ask this question because we failed at a previous question.
If the answer was "no", we would mark it as "Obfuscated" and the following would apply:

When compiling source code to binary, usually a lot of meta information is retained. A variable storing a masterseed would usually still be called masterseed, so an auditor could inspect what happens to the masterseed. Does it get sent to some server? But obfuscation would rename it for example to _t12, making it harder to find what the product is doing with the masterseed.

In benign cases, code symbols are replaced by short strings to make the binary smaller but for the sake of transparency this should not be done for non-reproducible Bitcoin wallets. (Reproducible wallets could obfuscate the binary for size improvements as the reproducibility would assure the link between code and binary.)

Especially in the public source cases, obfuscation is a red flag. If the code is public, why obfuscate it?

As obfuscation is such a red flag when looking for transparency, we do also sometimes inspect the binaries of closed source apps.

As looking for code obfuscation is a more involved task, we do not inspect many apps but if we see other red flags, we might test this to then put the product into this red-flag category.

The product cannot be independently verified. If the provider puts your funds at risk on purpose or by accident, you will probably not know about the issue before people start losing money. If the provider is more criminally inclined he might have collected all the backups of all the wallets, ready to be emptied at the press of a button. The product might have a formidable track record but out of distress or change in management turns out to be evil from some point on, with nobody outside ever knowing before it is too late.

Application build test result

HSM stands for Hardware Security Module for Embedded Applications.

Product Description

  • Embedded Hardware Wallet for Crypto & Blockchain
  • BIP 32/39/44 HD wallet
  • 640 Foreign and private/public key slots
  • ED25519, X25519, secp256k1, secp256r1 (NIST P-256) support
  • Secure encapsulated module with hidden 30-pin connector
  • Code compatible with ZK4 & HSM4
  • Measured device identity & authentication
  • Data encryption & signing
  • Key generation & storage
  • Physical tamper detection
  • Battery monitoring with last gasp feature
  • Hardware root of trust

Documentation

Zymbit Tutorial

Zymbit’s Hardware Wallet conforms to BIP32, BIP39, BIP44 documents for Hierarchical Deterministic (HD) wallets.

Specifications

HSM6 with BIP 32/39/44 Hierarchical Deterministic Wallets feature:

  • Create master seeds and derive child keys
  • Ability to recover master seeds
  • Ability to index wallet nodes with ZYMKEY key slots

Multifactor Device ID and Authentication

HSM6 enables remote attestation of host device hardware configuration:

  • Unique ID token created using multiple device specific measurements
  • Cryptographically derived ID token never exposed
  • Custom input factors available to OEMs
  • ID tokens bound to host permanently for production, or temporarily for development
  • Changes in host configuration trigger local hardware & API responses, policy dependent Data Integrity

Encryption & Signing

HSM6’s cryptographic engine utilizes strong cipher functions to encrypt, sign and authenticate data:

  • Strong cipher suite includes ECDSA, ECDH, AES-256, SHA256
  • AES-256 encrypt/decrypt data service
  • Integration with TLS client certificate, PKCS11
  • TRNG - true random number generator, suitable seed for FIPS PUB 140-2, 140-3 DRNG. Key Security

Generation & Storage

HSM6 generates and stores key pairs in tamper resistant silicon to support a variety of secure services:

  • 14 key slots, factory-defined, user available
  • 512 empty key pair slots, user available
  • 128 foreign public key slots, user defined
  • Cryptographic primitives
  • ED25519, X25519
  • ECC KOBLITZ P-256 (secp256k1), ECC NIST P-256 (secp256r1)
  • ECDSA (FIPS186-3), ECDH (FIPS SP800-56A)
  • AES-256 (FIPS 197), TRNG (NIST SP800-22)

Installation

The Zymbit HSM6 needs to be installed onto a PiZero HAT. (More information here)

ANALYSIS

This is the tutorial for generating the master seed.

The Zymbit HSM6 in and of itself, doesn’t act like a consumer bitcoin wallet device for the average cryptocurrency enthusiast. It needs additional hardware with advanced technical knowledge of installing modules onto Raspberry Pi’s and configuring these into a consumer product. It does have the requisite characteristics to generate a usable wallet - provided the user also has a Raspberry Pi and knowledge on how to configure the Zymbit.

The Zymbit is geared towards makers who want to create a secure blockchain product.

As a snap-in security module, it has no interface and no display of any sort that would allow the average user to use it from the get-go.

Tests performed by Daniel Andrei R. Garcia

>
