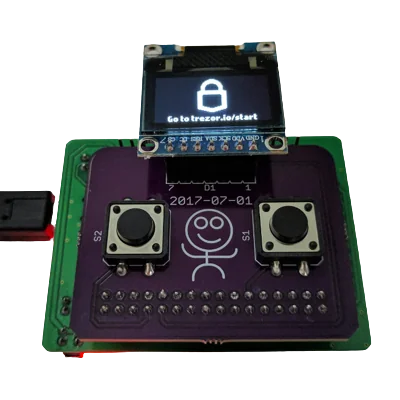

MCUDEV Trezor DIY DevKit

Latest release: ?? ( 9th October 2019 ) 🔍 Last analysed 11th November 2022 . Do-It-Yourself Project Not updated in a long time
31st July 2017

This project is not meant for non-technical end users.

As part of our Methodology, we ask:

Is the product meant to be ready for use "out of the box"?

If the answer is "no", we mark it as "Do-It-Yourself Project".

Many hardware wallet projects aim to be as transparent as possible by using only off-the-shelf hardware with an open design and open code. If the product reviewed is not available in an assembled form - if the user has to source his own hardware to then maybe solder and compile software to install on the device it falls into this category.

But we also ask:

Was the product updated during the last two years?

If the answer is "no", we mark it as "Not updated in a long time".

Bitcoin wallets are complex products and Bitcoin is a new, advancing technolgy. Projects that don’t get updated in a long time are probably not well maintained. It is questionable if the provider even has staff at hands that is familiar with the product, should issues arise.

This verdict may not get applied if the provider is active and expresses good reasons for not updating the product.

Do your own research!

Try out searching for "lost bitcoins", "stole my money" or "scammers" together with the wallet's name, even if you think the wallet is generally trustworthy. For all the bigger wallets you will find accusations. Make sure you understand why they were made and if you are comfortable with the provider's reaction.

If you find something we should include, you can create an issue or edit this analysis yourself and create a merge request for your changes.

The Analysis

Product Description

From the mcudev GitHub page:

This hobbyist project documents kits that developers can use to explore, develop, test, and debug the open source TREZOR One hardware and software.

Kit Contents: v0 (the breadboard version)

  • 1 x Waveshare Core405R Dev Board
  • 1 x ST-LINK V2 STM32 USB Debug Adapter
  • 1 x 7-pin SPI 128x64 0.96 inch SSD1306 driven OLED Display Module
  • 2 x 12mm x 12mm x 5mm tactile momentary switches
  • 1 x half-size solderless breadboard
  • 1 x USB Cable Type A Plug/Male to Type Mini-B Plug/Male
  • Female to male jumper wires with 0.1” header contacts
  • Female to female jumper wires with 0.1” header contacts
  • 22 AWG solid-core copper wire

Analysis

This is a do-it-yourself project that hasn’t been updated since 2019.

(dg)
