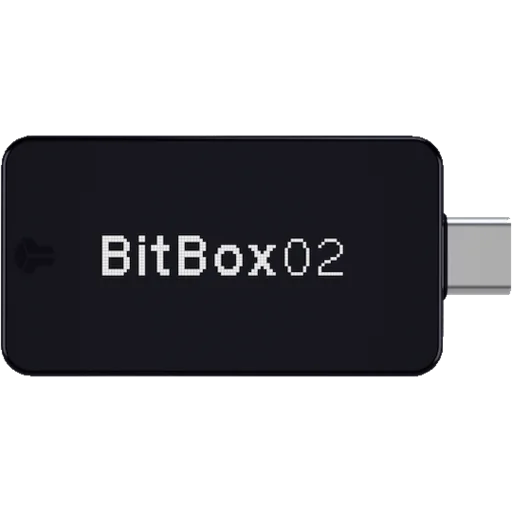

BitBox02

latest release: last analysed  10th July 2021 Reproducible when tested

Jump to verdict

Help spread awareness for build reproducibility

Please follow BitBox02 and thank them for being reproducible  via their Twitter!

Disclaimer

The following Analysis is not a full code review! We plan to make code reviews available in the future but even then it will never be a stamp of approval but rather a list of incidents and questionable coding practice. Nasa sends probes to space that crash due to software bugs despite a huge budget and stringent scrutiny.

Do your own research!

Try out searching for "lost bitcoins", "stole my money" or "scammers" together with the wallet's name, even if you think the wallet is generally trustworthy. For all the bigger wallets you will find accusations. Make sure you understand why they were made and if you are comfortable with the provider's reaction.

If you find something we should include, you can create an issue or edit this analysis yourself and create a merge request for your changes.

The Analysis

The BitBox02 comes in two variations:

  • Multi
  • Bitcoin-only

The latter is great for Bitcoiners as software is only as secure as its weakest part, so many parts increase the chance of a weakness. With a no-altcoin version the attack surface is reduced.

In security features they claim:

Reproducible builds
Don’t trust, verify! The BitBox02 firmware is reproducible, meaning anyone can compile the open-source firmware themselves and verify that the binary is exactly the same as the official release. You can find instructions and more details on how the reproducible builds work on our Github.

which is great if we don’t find any show-stoppers …

For hardware wallets we care furthermore about who generates the master seed. In this case it looks like the device does not come pre-seeded, although a factory-provided random number also is part of the mix. It does not rely on a closed-source random number generator, although that also is part of the mix. As the seeds get generated with random numbers from:

  1. A true random number generator on the secure chip
  2. A true random number generator on the microcontroller
  3. A static random number set during factory installation and unique to each BitBox02
  4. Host entropy provided by the app running on your computer, e.g. from /dev/urandom
  5. A cryptographic hash of the device password

… at least so claims the provider. We would very much like to know:

  • Can the user access the raw entropy? Only if this is possible can a security expert determine if all the entropy actually went into the masterseed.
  • Can the user provide his own entropy, bypassing the problem of fake randomness? Using for example physical dices as the sole source of entropy allows the user to both get strong, reliable entropy and a way to test if the addresses displayed by the device are indeed derived from the correct masterseed.
    As the device allows recovery from the seed words, this can be done.

In this comparison the provider presents what they probably consider the most relevant aspects of their product compared with their competitors:

but those two bullet points in combination are worthy a deeper look into the details: Trezor doesn’t use a “Secure Chip” precisely because those are not open to public scrutiny. Prospect buyers have to sign NDAs before even getting a closer look at what these chips can do. And this problematic circumstance is very much acknowledged by the provider in this blog post:

The closed-source drawback
Secure chips are not even that expensive, so why does not every hardware wallet use them? The main drawback is that secure chips are closed source. Firmware running on a secure chip cannot be released as open source due to enforced non-disclosure agreements.

When it comes to firmware securing your bitcoin, creating random seeds and signing transactions, trusting closed source software that cannot be independently audited is just not good enough. In our opinion, you should not need to trust the manufacturer of your hardware wallet (and all its individual employees) to belong to the “good guys”, diligently finding their own bugs without independent reviews and then actually fixing them.

But the blog post goes on with some clever design considerations:

Best of both worlds
Still, general purpose MCUs are simply not up to the task of keeping a digital secret. In the best of all worlds, we would be able to run open-source firmware on an open-source secure chip. There are projects that aim to create such a chip, like TropicSquare, but no open-source chip is commercially available today. The next best option is to use the advantages of both open-source firmware and secure chip by combining them in a way that

  • the hardware wallet only runs open-source firmware,
  • the device is hardened against physical attacks using a secure chip, and
  • the secure chip does not need to be trusted, as it cannot learn any of the secrets.

The BitBox02 security architecture is designed towards these goals. We use two chips, a general purpose MCU and a secure chip in parallel, both with their unique strengths. Instead of running Bitcoin firmware directly on the secure chip, we run it on the MCU, meaning the code is fully open-source and auditable by anyone. Secrets are also stored on the MCU, but encrypted using multiple keys, including a key stored on the secure chip that can only be accessed using dedicated key derivation functions (KDF).

So the chip the BitBox02 uses is the ATECC608B but it’s only used supplementary:

  • The chips “secure” random number generator is used but so are other sources of entropy
  • The hardened key storage is used but not for the master seed itself. Only for an encryption key for that master seed which is stored outside the “Secure Chip”.

So the harm this closed source chip could do is very limited. It could deny service but it could not phone home or use poor randomness to leak the master seed which is our primary concern. The design is solid. Only remaining step is to see if the firmware is reproducible as advertised:

For a start we will try to reproduce firmware-btc-only/v9.6.0.

Independent of the update being done through the companion app, the BitBox02 should show the firmware binary’s hash prior to installation:

Verify the hash shown by the BitBox02:
The hash of the firmware as verified/shown by the BitBox02 at startup is:
e788644ec86c63c193e13a1b6cfbdda359b7117dc38090c794e1c6aea69f601f

$ git clone https://github.com/digitalbitbox/bitbox02-firmware
$ cd bitbox02-firmware/
$ wget https://github.com/digitalbitbox/bitbox02-firmware/releases/download/firmware-btc-only%2Fv9.6.0/firmware-btc.v9.6.0.bin
$ wget https://github.com/digitalbitbox/bitbox02-firmware/releases/download/firmware-btc-only%2Fv9.6.0/firmware-btc.v9.6.0.signed.bin
$ echo e788644ec86c63c193e13a1b6cfbdda359b7117dc38090c794e1c6aea69f601f; sha256sum *.bin
e788644ec86c63c193e13a1b6cfbdda359b7117dc38090c794e1c6aea69f601f
3a39395f04cbdfae3357efbb24a0c5f7fc9ce69bc505bfc545cb49dab76b4d46  firmware-btc.v9.6.0.bin
e41917450ef6fb80af9fbe8f85478973763fe593c23cdeaec481e5d5395dd3b9  firmware-btc.v9.6.0.signed.bin

Ok? That’s odd. There are two bin files provided and the source code. As the device should check the signature of any firmware update, the correct file should be firmware-btc.v9.6.0.signed.bin.

So now it’s not clear what reproducing binaries is worth if then the companion app downloads the firmware update from a different source or maybe the same and patches it? Accountability is lost as far as we can see. We opened an issue and will continue the review once we get clarity.

clarity came within 9h:

As for the hash shown in the release notes, please check this documentation:

master/releases#verify-the-hash-as-shown-by-the-bitbox02-at-startup

In summary, the hash you are seeing is the sha256d(<version><padded firmware>), and there is a small, easy to audit tool in the same folder to help reproduce it:

master/releases/describe_signed_firmware.py

To understand if the verification code is benign, we would have to also audit its direct and transitive dependencies. After all python allows MonkeyPatching dependencies, which allows any dependency to mess with this “small, easy to audit” function(s).

To verify we dug through their verification script and basically replicated the relevant parts in shell script:

We have to take the firmware-btc.v9.6.0.signed.bin and:

  • strip its first 588 bytes
    • 4 bytes “magic”
    • 4 bytes “version”
    • 3 * 64 bytes “signing keys”
    • 3 * 64 bytes “root keys”
    • 4 bytes “version” ← we need this “version”
    • 3 * 64 bytes “signing keys”
  • take the remaining bytes as “firmware”
  • append as many binary 1s as fit into the maximum firmware size of 884736 bytes

Here is the first 588 bytes in hexadecimal to our understanding:

btc-only magic:        11 23 3b 0b
signature (?) version: 01 00 00 00
sig key 1:             fe 01 4b fd d8 92 80 ce 2d a7 6e 95 84 aa 85 75 4f 68 3c 9e 10 48 10 9a 99 16 54 c5 2a bb ba 55 b0 f5 7c 60 f5 75 a3 a3 d5 cf 65 f3 cf 7b 50 e8 b4 c5 ac 95 71 29 27 04 89 92 ab 6c 97 8e 66 d9
sig key 2:             59 4d bc 1d 4c 81 a3 b5 aa 7e b4 b6 2c 9f ad 9e f3 f2 00 f2 59 a4 5c c0 6c c1 22 3c 0a ee a3 6f d5 76 98 af 4a 73 ff 49 de 7b 05 6e d4 0f d1 06 a8 2b 99 ad d0 82 c3 35 f2 a2 c6 72 00 af c6 43
sig key 3:             18 3e ba 23 f6 2d a6 7b 24 c1 9c 0d d5 79 25 60 38 45 3b c8 f5 76 36 59 85 c8 de 2f 7a 23 7b f7 33 cf 82 08 b6 b0 a9 05 e1 6f 45 43 c4 a3 0b 94 60 f5 78 f5 45 1e fd 01 3b 73 53 36 ad 56 7b 3b
root key 1:            59 32 1b 68 14 7c e1 4a ab 24 f5 8a d0 3c 32 d2 09 93 02 2f 6f d5 b6 34 a9 d7 54 f3 fd eb ba 0b 39 c5 97 0a 2b 69 be 7d f6 8c e4 d0 3e e4 ca 81 fe 52 0d ca 98 a5 04 24 f9 30 a0 41 f1 5b 02 6b
root key 2:            00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
root key 3:            63 ca 7f d0 0e 56 44 e4 37 31 74 94 74 1f bc bb 39 6d 2b 81 e4 97 f4 4f 88 a5 d9 dd af c2 4d 34 fc f7 ea 2a d5 87 e6 3a 9c 3f c9 f2 24 a1 32 6f 73 a0 4b bf 9e d9 84 8a 60 1e 0a 7b 48 fe 6f 3f
firmware version:      16 00 00 00
sig key 1:             3a 78 af b9 98 0f 96 1c 2d ee 88 6f 81 1c a2 e7 9a 57 51 f1 f5 1c 19 b4 20 a0 7f ac e3 44 cf af 61 9d b3 5b 51 11 4c 4b 6d ae 30 0d be a4 ca 36 64 41 86 60 68 d7 6a 6d 12 32 8a 10 bc f3 23 52
sig key 2:             8f e6 94 2a bc bd fd d1 44 ed 26 69 a7 cf 61 a3 8c e9 1d 25 d6 a4 44 9e 77 ec 28 c0 5a 79 1b 80 55 2e a5 ad f0 87 f5 6f 68 e1 57 f4 62 c0 b3 53 d4 de 8d 53 b4 c1 1e e0 9a 1d 9c a8 d7 13 42 c0
sig key 3:             00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

The following is a condensed version of lots of try-and-error of extracting the relevant parts:

$ head -c 588 firmware-btc.v9.6.0.signed.bin > p_head.bin
$ tail -c +589 firmware-btc.v9.6.0.signed.bin > p_firmware.bin
$ cat p_head.bin | tail -c +$(( 8 + 6 * 64 + 1 )) | head -c 4 > p_version.bin
$ cat p_version.bin | xxd -p
16000000
$ wc -c p_firmware.bin
461228 p_firmware.bin
$ echo $(( 884736 - 461228 ))
423508
$ dd if=/dev/zero ibs=1 count=423508 | tr "\000" "\377" > p_padding.bin
$ cat p_version.bin p_firmware.bin p_padding.bin | sha256sum | cut -c1-64 | xxd -r -p | sha256sum | cut -c1-64
e788644ec86c63c193e13a1b6cfbdda359b7117dc38090c794e1c6aea69f601f

So the BitBox02 shows the hash of all but the first 588 bytes while those 588 bytes are mostly signatures. 588 bytes are enough for backdoors, so the correct working of the bootloader is essential. Its detailed inspection is beyond the scope of our analysis.

So now, on to really reproducing the firmware …

$ releases/build.sh firmware-btc-only/v9.6.0 "make firmware-btc"
$ sha256sum temp/build/bin/firmware-btc.bin firmware-btc.v9.6.0.bin
3a39395f04cbdfae3357efbb24a0c5f7fc9ce69bc505bfc545cb49dab76b4d46  temp/build/bin/firmware-btc.bin
3a39395f04cbdfae3357efbb24a0c5f7fc9ce69bc505bfc545cb49dab76b4d46  firmware-btc.v9.6.0.bin

During compilation we saw a surprising amount of dependencies being mentioned using golang, rust, python and C which again hopefully others look into in more detail. After all, the provider has a bug bounty program.

The result in summary:

appId:        bitBox2
variant:      firmware-btc-only
version:      v9.6.0
fileHash:     e41917450ef6fb80af9fbe8f85478973763fe593c23cdeaec481e5d5395dd3b9
firmwareHash: e788644ec86c63c193e13a1b6cfbdda359b7117dc38090c794e1c6aea69f601f

The result looks good. The BitBox02 is a hardware wallet and its firmware is reproducible.

(lw)

Verdict Explained

The binary provided was reproducible from the code provided.

As part of our Methodology, we ask:

Does the app we built differ from what we downloaded? If not, we tag it Reproducible

If we can reproduce the app we downloaded from the public source code, with all bytes accounted for, we call the app reproducible. This does not mean we audited the code but it’s the precondition to make sure the code has relevance for the app.

If the provider puts your funds at risk on purpose or by accident, security researchers can see this if they care to look. It also means that inside the company, engineers can verify that the release manager is releasing the app based on code known to all engineers on the team. A scammer would have to work under the potential eyes of security researchers. He would have to take more effort in hiding any exploit.

“Reproducible” does not mean “verified”. There is good reason to believe that security researchers as of today would not detect very blatant backdoors in the public source code before it gets exploited, much less if the attacker takes moderate efforts to hide it. This is especially true for less popular projects.
